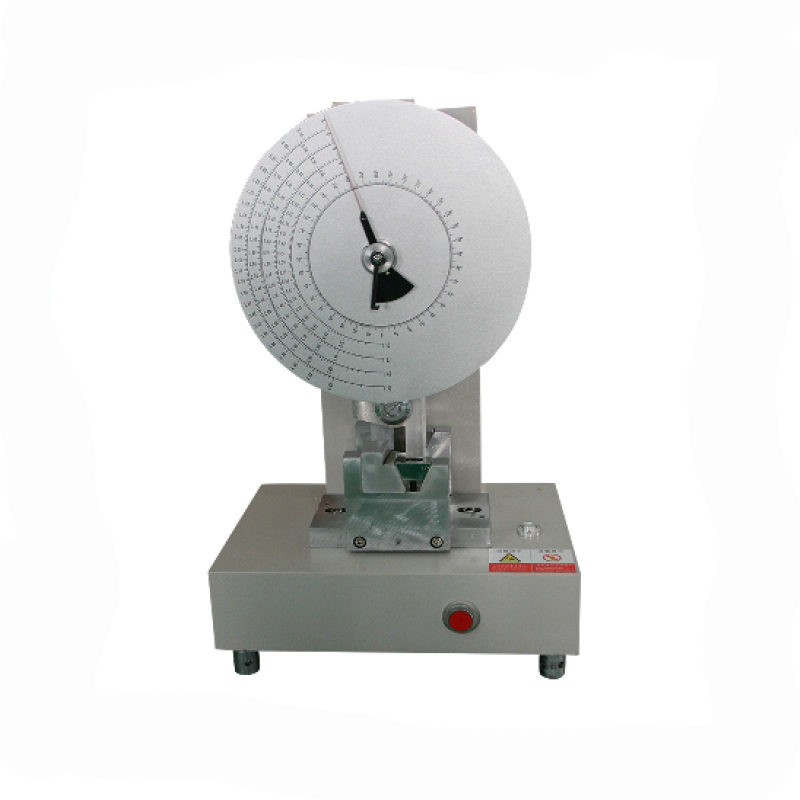

HZ-1702C Charpy impact testing instrument

Equipment Summary:

HZ-1702C Charpy impact testing instrument for ber for pointer degrees, electric hammer body disc. Is a kind of simple structure, convenient operation, accurate and reliable data of impact test enginery.

Applicable industry:

It is used for rigid plastic, ber reinforced composites, berglass, ceramics, asbestos and other non-metallic material impact test.

To meet the standard:

JB/T8761, GB/T1043 ISO179, etc

The pendulum energy	0.5J	1J	2J	4J	5J
Moment of pendulum	0.258Nm	0.516Nm	1.031Nm	2.062Nm	2.578Nm
the minimum degree value	0.005J	0.01J	0.02J	0.04J	0.05J

2. Impact speed :2.9m/s

3. Pendulum Pre-elevation : 160°

4. Pendulum shaft center to sample center distance: 221mm

5. Jaw radius：1mm

6. Impact of the blade Angle：30°

7. Impact the blade radius：2mm

Sample type	Length	breadth	Thickness	distance between the support line
1	80±2	10±0.5	4±0.2	60
2	50±1	6±0.2	4±0.2	40
3	120 ±2	15±0.5	10 ±0.5	70
4	125 ±2	13±0.5	13 ±0.5	95
